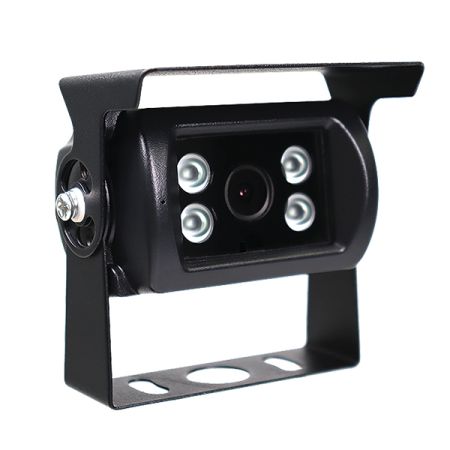

1080p AHD Rear Facing Camera with NTSC Format - 12V

Enquire
Code Unit (GBP) Qty Price Pack Qty Price (GBP) Stock Price Type
0-775-16ANTSC
0-775-16ANTSC
- / unit - Pack Qty: Ea - - - Ea x Please Login for Prices
- +
Pack Qty: -
-
ADD TO ORDER

This NTSC-format 1080p AHD Rear Camera is powered by the high-sensitivity 1/2.8" SONY IMX307 CMOS sensor to captures sharp, detailed full HD video even in low-light conditions. With a simple jumper adjustment, users can effortlessly switch between AHD and analogue (CVBS) output, offering maximum flexibility for a wide range of installation scenarios.

    • 1080p AHD crystal clear image resolution
    • Supports normal & mirror image
    • Dual output compatibility - AHD/CVBS
    • NTSC video format
    • Microphone
    • 4-Infrared LEDs
    • Up to 10 metres night vision
    • Protected to IP68
    • L 84 x W 76 x H 70mm
    • E-Marked R10 approved

Wired And Wireless Cameras
My Cart 0
Technical Information
Type Rear camera with NTSC Format
Voltage 12V
Lens Sony 1/2.8”
Microphone Yes
IP rating IP68
Resolution 1080p
Night Vision Distance Up to 10m
View Angle 120° H, 95° V
Weight 0.360Kg
Dimensions (mm) L 84 x H 70 x W 76mm
Certifications E-Marked, R10 EMC
Mirror/Normal image Normal
Image sensor AHD CMOS IMX307
Number of LEDs 4
